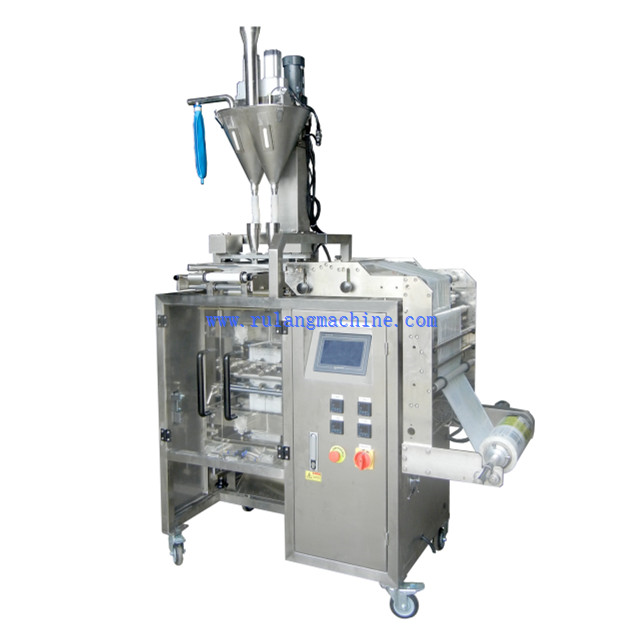

Multi Line Medicine Powder Packing Machine

Introduction



Suitable for powder powder, such as coffee powder,medical powder,milk powder,flour,bean powder .etc

1. Famous brand PLC control system, large touch screen, convenient to operate;

2. Advanced design, high precision and fast speed;

3. No film alarm, saving materials and no wasting film;

4. Photoelectric tracking system for precise bag length

and position of film





Feature



1. Back sealing or three sides sealing. Pretty package form and count accurately.
2. Use multi path temperature controlling and heat sealing organ, controlling temperature accurately, good heat balance and high quality of sealing. Suitable for packing multi materials;
3. High efficiency packing machine for powder use shaking container to adjust the device adjusting the package capacities at random in the process to improve the working efficiency. Packing materials are like desiccant, tea and medicine and so on.
4. Powder vertical packing machine use the latest hopper feeder which can be changed its height freely in order to avoid the readjustment after cleanout and improve the working efficiency. Packing materials are like albumen powder, coffee and flour.
5.Automatic strip bag packing machine makes use of stainless steel. Due to applying domestic advanced suction technology, there is no material pressed and leaked. Package capacity can be adjusted infinitely in stated range. Be suitable for packing honey, pesticide and cosmetic and so on.Especially that semi-fluid model has back siphonage function that can avoid clamping and leakage.











Specification:

Model	RL-480FJ	RL-720FJ
Lanes number	4~2 lanes	7~3 lanes
Capacity	Max.35 bags/min/lane
Bag size	L:70--120mm W:50-120mm	L:70--120mm W:50-120mm
Film width&thickness	Max.480mm,0.05--0.1mm	Max.720mm,0.05--0.1mm
Measuring Method	Auger by servo motor
Sealing type	4 sides sealing
Power supply	1N+PE/50HZ/AC220V/4.9kw	1N+PE/50HZ/AC220V/5kw
Air consumption	0.8 MPA 0.8m3/min
Dimension	950*1470*2220mm	1153*1654*2220mm
Weight	300kg	400kg











Packing and shipping for powder packing machine



Welcome to send inquiry about our automatic powder packing machine!
