Automatic Electric Counting Machine video

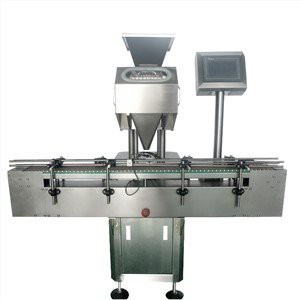

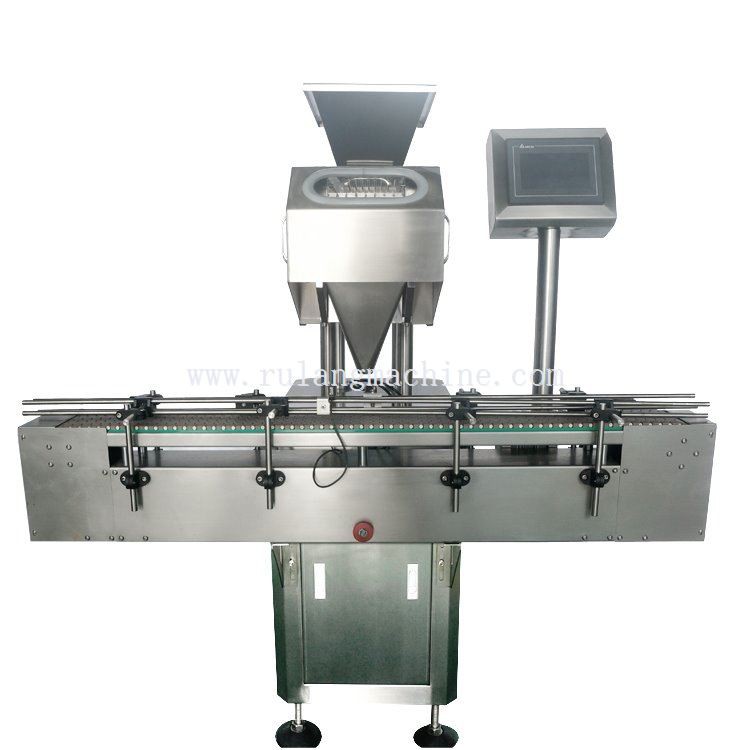

Automatic Electric Counting Machine

RL-S8 Automatic Electronic counting machine is our company's third generation of innovative products. The 8-channel counting machine can count and package solid particles such as tablets, capsules (transparent or opaque hard capsules, soft capsules).

Description




Description

This Automatic Electric Counting Machine is a compact automatic line for counting solid forms, as well as packing solids with dimensions from 3 to 25 mm and thickness not exceeding 10 mm.This equipment is suitable for diversified solid drug forms, such as capsules, round and rectangular tablets, soft gelatin capsules and other tablet shapes, which can be used with precise parameter settings to minimize working errors during use. In addition, it consists of a stainless steel construction and includes a durable rotary table, collection tray and conveyor to automate the collection of bottles after filling. Therefore, it is widely used in clinical research institutes, hospitals, pharmaceutical facilities and laboratories, where it can effectively ensure the cleanliness of the materials and avoid contamination by dust and foreign materials.


Features

This Automatic Electric Counting Machine has the filling capacity of 10-9999 bottles, and can be adjusted at will, which is suitable for small, medium, large and various scales of production. It adopts high-tech dust-proof photoelectric detection technology, which has accurate counting effect in the processing process, and can reach the efficiency of 10-45 bottles per minute according to the different sizes of packaging bottles. The parts in contact with the product are easy to check, disassemble and clean, and are made of stainless steel or FDA-approved materials to ensure that drugs will not be contaminated during processing. In addition, the equipment is equipped with a comprehensive safety mechanism, including automatic fault detection, automatic alarm and other control functions, and will inform you in time when there is a fault, so as to avoid delaying processing or wasting raw materials.


Main Technical Data:

Model Name

RL-S8

Application

1.Filled capsule(00-5#)
2.Soft Gelatin capsule
3.chewing gum
4.tablet
5.other solid object under machine range

Hopper Volume

40L

Capacity

10-45bottles/min

Filling Quantity

10-9999pcs/bottle (adjustable)

Bottle Size

Diameter: 30-75mm
Height:40-250mm

Counting Size

Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-25mm

Compressed air

0.5Mpa

Conveyor Belt Length

2400mm

Machine Weight

650kg

Machine Size L × W × H (mm)

800*1400*1560mm






Packing and shipping
