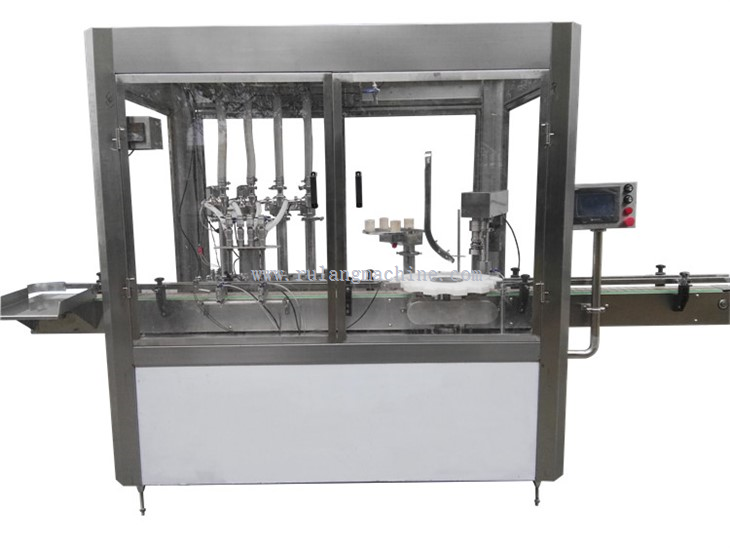

Automatic Liquid Soap Filling Machine Shampoo Cosmetic

RL-80JT liquid soap filling machine

Automatic Hand Sanitizer/liquid Soap/shampoo/oil/fertilizer/beverage/cosmetic/honey Bottle Filling Capping Labeling machinery

Application:

Automatic hand sanitizer is liquid paste filling, quantitative precision filling, various parameter adjustment is simple and quick, easy to operate, accurate and stable in the filling process, high efficiency.





Performance feature:

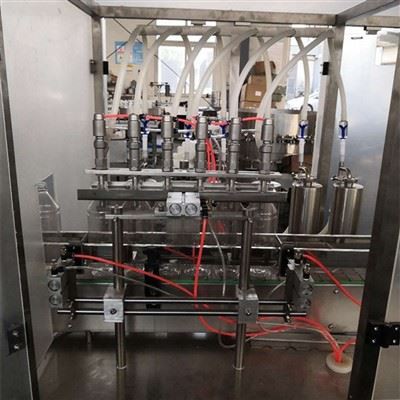

1.8 head paste liquid filling, automatic efficient metering precision

2.Stable and safe transportation fixed body of bottle, automatic filling and filling without bottle filling.

3.Calibration device sensitive precision high precision automatic filling

4. Each filling nozzle is equipped with a bottle opening setting to ensure accurate alignment of injection materials.

5. High power fine copper large electric mtor strong power and stable operation.,

6.Automatic filling of liquid, paste and viscosity fluid, accurate measurement, no splash and overflow.



Technical Parameters

Filing nozzle	8 pcs

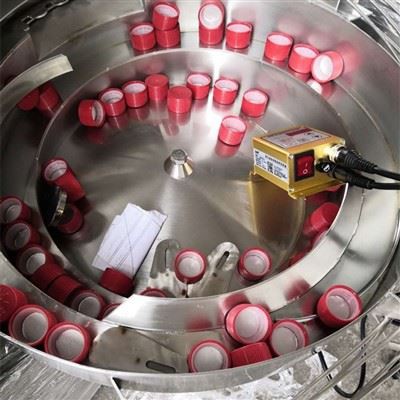

Caps feeder	1set vibration caps feeder
Capping nozzle	2pc
Filling range	50-1000ml(can customized)
Capacity	30-60 bottles/min
Filling accuracy	≤ ±1%
Pass rate	≥ 98%
Power supply	1 Ph. AC220V, 50/60Hz
Air pressure	0.4-0.6MPa
With gas	≥0.1m3/min(This machine is a pneumatic machine, need to own air pump)
Total power	4.5 KW
Net weight	800kg
Overall dimension	L4000 ×W1500 ×H1650mm





FAQ

Q1: What is the product range of our factory?

A: Our factory do filling line machines like filling capping labeling for bottles, and various sachet packing machine.

Q2: How to order?

A: Please send us your purchase order by email or leave message, Send us your specific machines demands, and then we offer quotation to you. After you confirm order, we send a proforma invoice for your order. We need to know the following order information:

1) Product information: the bottles/sachet size, your bottle/sachet picture, speed need, machines list, machine components need, function need, etc

2) Delivery time is required.

3) Transportation information: company name, address, phone number, destination seaport/airport.

4) Contact information, like company name, address, tel, e-mail, whatsapp or wechat etc.





CE certificate approved



Packing and shipping



Welcome to send inquiry about our Automatic sauce filling machine!
