Medicine Powder Filling Machine video

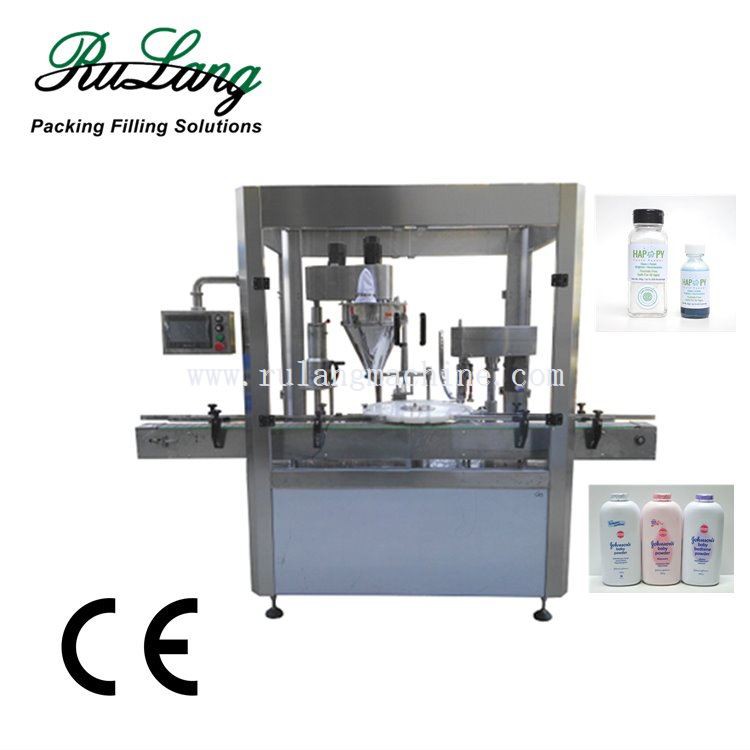

Medicine Powder Filling Machine

Automatic powder filling capping machine is the main parts in the powder production line, mainly used for 10~1000ml powder filling, feeder caps, capping. Servo motor screw filling, touch screen interface, frequency control.

Description



Description

This Medicine Powder Filling Machine is a key component in the powder production line, specially designed for the filling of 10~1000ml powder. The equipment combines modern technology and innovative functions, and is suitable for filling various powders such as medicinal powder, food powder and cosmetic powder. During the filling process, its nozzle will reciprocate according to the filling dose, and will move upward from the bottom of the bottle to the neck to reduce the generation of air inside the container. Through accurate filling technology and advanced control system, it can meet the filling requirements of different powder products, reduce the intensity of manual operation and ensure the filling accuracy and consistency of products.



Features

1. Servo motor: This Medicine Powder Filling Machine adopts servo motor and screw filling technology, which can realize accurate filling operation and ensure the consistency of powder filling each time.


2. Touch screen interface: The equipment is equipped with a touch screen interface, which is convenient for operators to set and adjust various filling parameters. At the same time, its frequency conversion speed regulation function can adjust the working speed of equipment according to needs and improve production efficiency.


3. Stainless steel body: All parts of the filling machine are made of 304 stainless steel, and have passed GMP certification, which conforms to strict food safety regulations and proves that they can contact food to ensure the hygiene and safety of products.


4. On-line weighing function: Its on-line weighing feedback function can automatically fill twice according to the proportion of materials to ensure the filling accuracy and consistency of products.







Technical Parameters

Model

RL-40FJ Medicine Powder Filling Machine

Bottles filling speed

5~120 bottles/min

Filling nozzle

Powder screw filling nozzle 1/2/4/6....

Capping nozzle

1/2/4/8/10....

Filling accuracy

+/- 1%

Power

2.5KW

Machine size

L3050*W1680*H1790mm

Machine body material

316+304 stainless steel

Machine weight

620KG

Power supply

380V, 3ph





FAQ
Q1. How can we guarantee quality?
A: Making machine according to customer samples and demands, send machine drawing to confirm before production. Always final Inspection before shipment.

Q2: What about your warranty?
A: Our warranty is 1 year, one full set spare parts provide free when delivery(normally spare parts enough for 1-2 years)

Q3: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and production in time.

Q4: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use escrow. it will protect your money during the whole stage of the transaction. If machine not reach your demands as we promised, we can refund all your payment.


CE certificate approved



Packing and shipping



Welcome to send inquiry about our machine!





Why choose us?

  • We offer excellent after-sales support, ensuring our customers are satisfied long after the sale.
  • Our Medicine Powder Filling Machine are of first-class quality and provide first-class after-sales service.
  • Our machines use the latest technology to ensure consistent and accurate filling.
  • To achieve the common goal, each of our employees should be of one heart and one mind, work together, and use our collective wisdom and strength to achieve the common development.
  • We have a flexible production line that can quickly adapt to changing customer needs.
  • Facing the future, we will always carry forward the spirit of striving for first-class, stand out in the market competition, and create more high-quality Medicine Powder Filling Machine.
  • We are constantly looking for ways to improve our products and services, staying ahead of the competition.
  • We have been strictly implementing international standards for production, so our products are loved by many consumers at home and abroad.
  • Our team consists of skilled professionals who are committed to excellence.
  • Strong technical strength, the use of scientific production management methods, and the selection of high-quality materials are the guarantee of our high-quality Medicine Powder Filling Machine.
