Automatic Perfume Filling Machine video

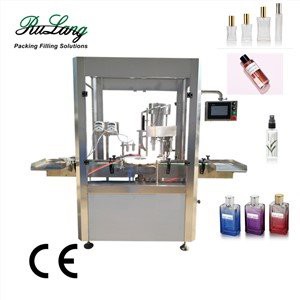

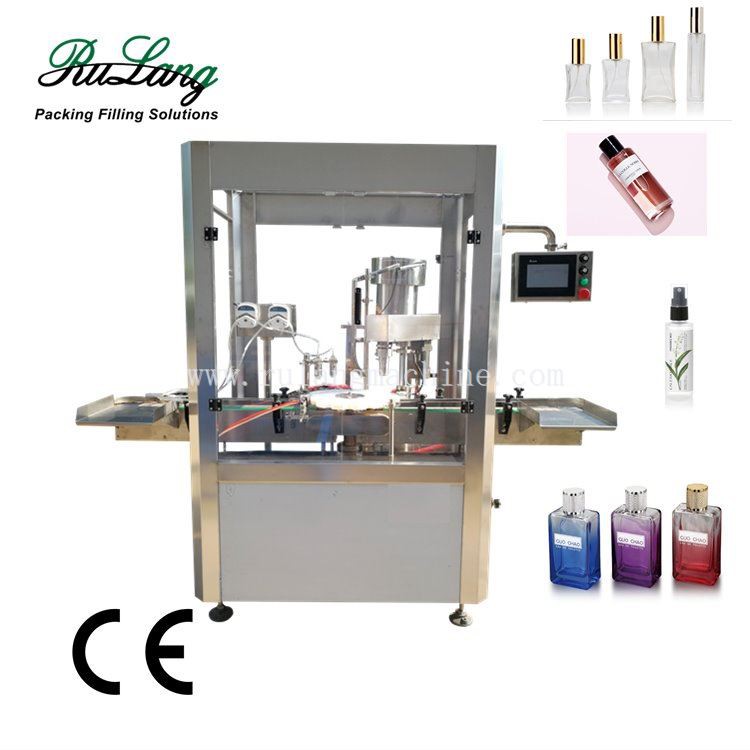

Automatic Perfume Filling Machine

Perfume filling machine work step: automatic piston pump filling -- spray caps feeding--screw or crimping caps--press outside cover(option).

Description



Description

This Automatic Perfume Filling Machine is an efficient and intelligent device specially designed for filling liquid products such as perfume, essence and cologne. Its working steps include automatic piston pump filling, cap spraying and feeding, screwing or crimping the cap, etc. This fully automatic operation can reduce manual intervention, improve production efficiency, and ensure accurate, hygienic and efficient operation in perfume filling process. The equipment ensures that each container can obtain accurate liquid injection quantity, and at the same time of filling, the equipment can also perform operations such as cap spraying, screwing or capping, so as to realize the multifunctional automation effect of the filling process.


Features

1. Wide compatibility: This Automatic Perfume Filling Machine is not only suitable for perfume, but also for filling liquid products such as essence and cologne. This versatility makes it widely used in cosmetics, personal care products and other fields.


2. Highly automated: it is a highly automated equipment, which can realize all stages of the bottling process, and the parameters in these processes are completely controlled. This includes cleaning, rinsing, filling and sealing, so that users can make flexible settings according to their needs.


3. Air pre-emptying function: The equipment is equipped with air pre-emptying function, which can remove the air in the container before filling, ensure the accuracy and stability of liquid filling and prevent overflow.


4. Clean the machine body: The machine body of the filling machine is made of stainless steel, which has the characteristics of corrosion resistance and easy cleaning. This can keep the filling process sanitary and avoid polluting the liquid, thus retaining the original fragrance of the perfume.


5. Anti-drip filling head: Its filling head has anti-drip design to ensure good sealing performance when filling liquid. This design can not only prevent leakage, but also ensure the cleanliness and hygiene of the filling process.


Suitable bottle picture




Technical Parameters

Model

RL-60XG Automatic perfume filling machine

Filing heads

4/9/8/12/16/20pcs

Caps feeder

1set

Capping nozzle amount

1/2/4/8/16pc

Filling volume

10-1000ml( filling amount is customized according to demand)

Capacity

20-80 bottles/min

Filling accuracy

≤ ±1%

Pass rate

≥ 98%

Power supply

1 Ph. AC220V, 50Hz

Total power

3 KW

Machine general weight

520kg

Overall dimension

L3200 ×W1300 ×H1700mm





FAQ
Q1. What is your terms of payment?
A: T/T 30%---50%(depends on machines) as deposit, and after machine finished and machine checking, pay the rest balance before delivery.


Q2. Do I need send samples bottles/film for testing?
A: Certainly, it is better for machine customization. Mostly of our machines need bottles to customized molds, and run machine before delivery. If can not send film for testing sachet packing machine, we can use our film in store to test for you.


Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or drawings. Most of our machines is customized fully according to your demands or samples sachets/bottles.


Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, we will also show you video/picture before shipment.


Q5. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit; All machines is well tested before delivery. Full videos and manual book teaching using machine.


CE certificate approved



Packing and shipping



Welcome to send inquiry about our perfume filling machine!
