Automatic Cake Packing Machine Packaging Machine Horizontal Flow Wrapping Machine

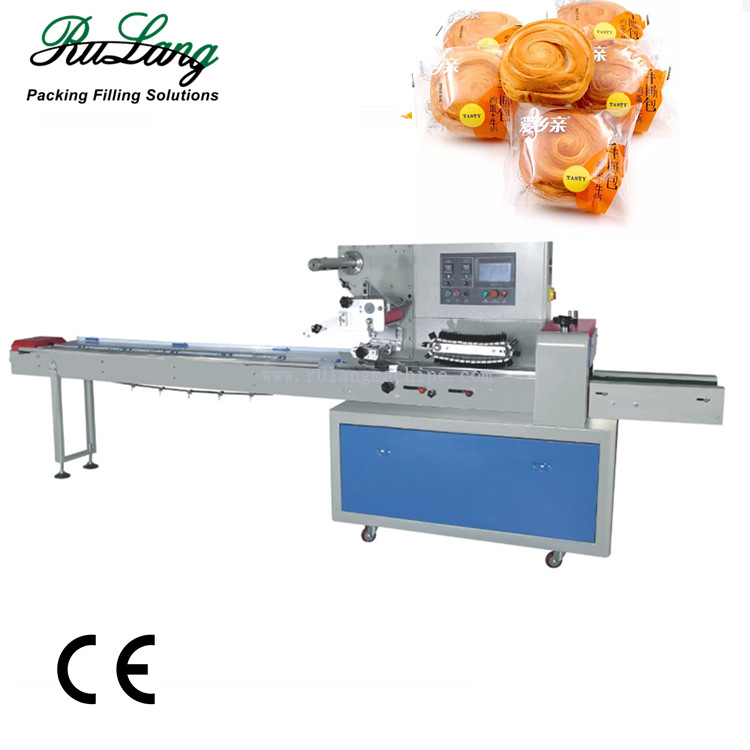

RL-250C automatic cake packing machine

Automatic Biscuit chocolate cake products pillow bag automatic flow packing wrapping machine horizontal flow packaging machine

Description:

This horizontal flow packing machine is suitable for different kinds of product packing into roll film bags. Such as candy, chocolate, protein bars, bakery food of cake, biscuit, bread, instant noodle, leafy vegetables, fruit and non-food products like hardware parts, daily supplies, hotel supplies, medical products, ect..

Performance feature:

1. Dual frequency converter control, bag length can be set and cut immediately, without the need to adjust the air travel, one step in place, saving time and film.

2. Human machine interface, convenient and fast parameter setting.

3. Fault self-diagnosis function, clear fault display at a glance.

4. High sensitivity photoelectric eye color tracking, digital input of sealing position, making the sealing position more accurate.

5. Temperature independent PID control, better suited for various packaging materials.

6. Positioning and shutdown function, without sticking the knife and wasting the envelope.

7. The transmission system is simple, works more reliably, and maintenance is more convenient.

8. All controls are implemented by software, facilitating functional adjustments and technological upgrades.

Technical Parameters

Model	RL-250	RL-320
Film width	Max.250mm	Max.350mm
Bag length	65-190mm /120-280mm	90-220mm/150-330mm
Bag width	30-110mm	30-110mm
Product height	Max.40mm	Max.45mm
Packing speed	40-230 bags/min	40-200 bags/min
Power supply	220V 50/60Hz	220V 50/60Hz

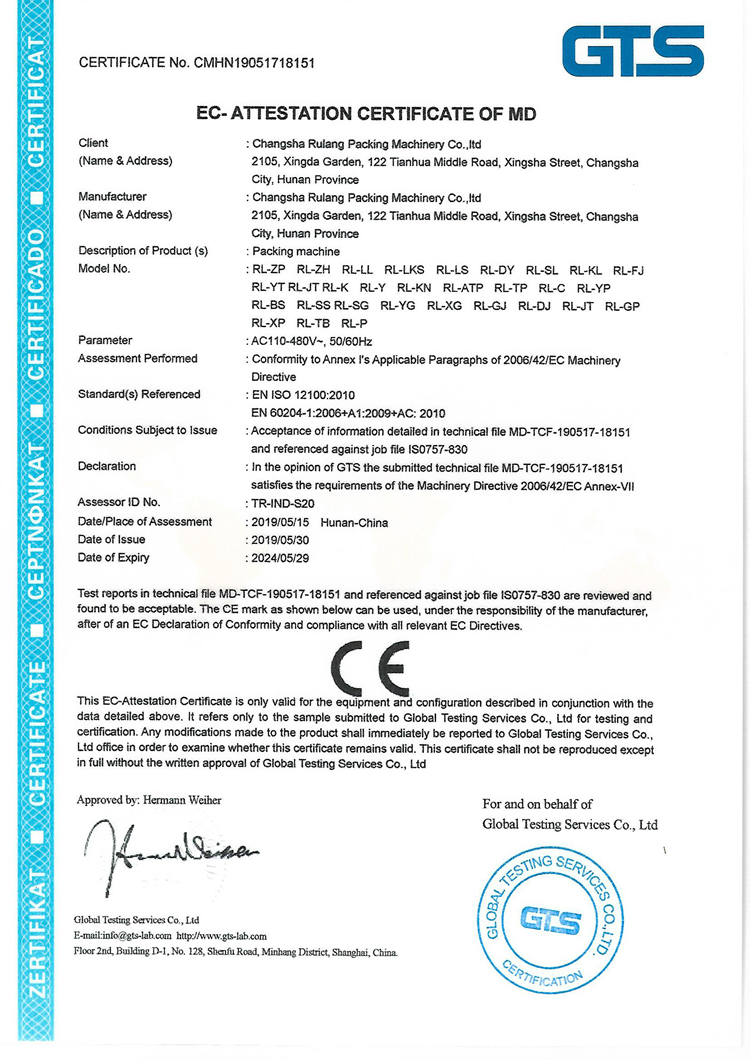

CE certificate approved

Packing and shipping

The wooden case is customized according to the dimension of the machine for the long time shipping and transferring.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2.Cleaning the dust and the scrap after testing the machine with the air pump.
3. Disassemble some certain part of the machine.
4. All the disassemble part, toolbox, main machine wrap by film
5.There will have screw fix the machine at the bottom of the wooden case 6.If any special requirements, we will pack it as requested.

Welcome to send inquiry about our automatic cake packing machine!

Changsha Rulang Packing Machinery Co.,ltd

Website: www.rulangmachine.com
