Automatic Peanut Butter Filling Machine

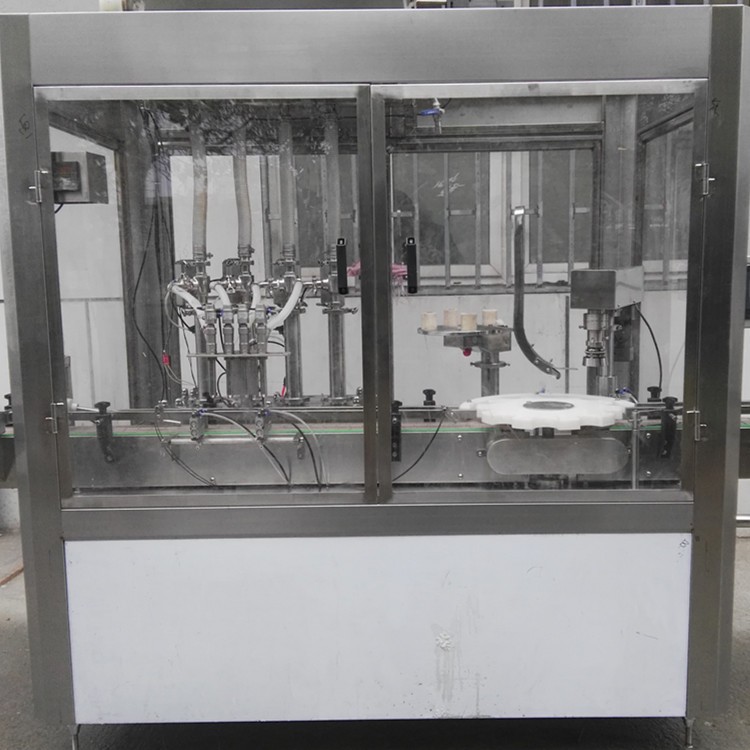

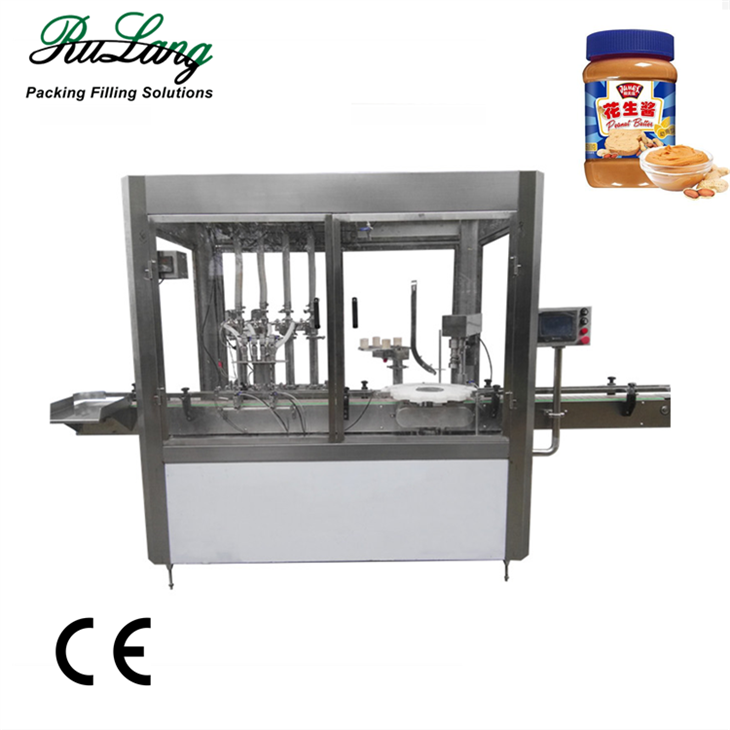

RL-80JT automatic peanut butter filling machine

Automatic 250g 500g 1kg plastic glass jar honey filling machine peanut butter sauce packing machine capping machine paste bottling machine



Discription:

The automatic peanut butter filling machine is mainly developed for the filling requirements of products with medium or high viscosity. The filling volume and filling speed can be adjusted arbitrarily with high precision; Multi head filling; Insulation system; Automatic filling system; It is especially suitable for medium particles with high concentration. It can also be filled with other seasoning products of the same concentration, such as sesame paste, coconut paste, seafood paste, barbecue paste, butter paste, etc. It is an ideal equipment for filling peanut butter.



Performance feature:

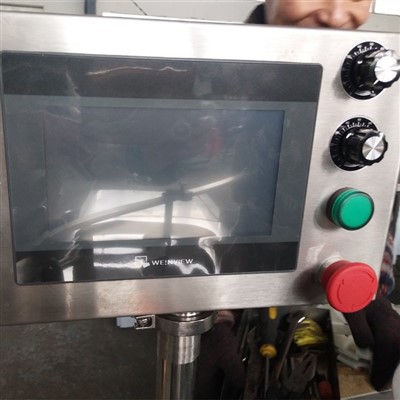

Peanut butter filling machine includes touch screen and PLC control, debugging equipment or changing varieties only need to be set on the screen. After entering the bottle, positioning, filling, the bottle will automatically run.

Contact with materials are made of SUS316 stainless steel, fully in line with GMP standards;

Quick connection, simple and fast disassembly and washing;

The filling quantity and filling speed are easy to adjust.

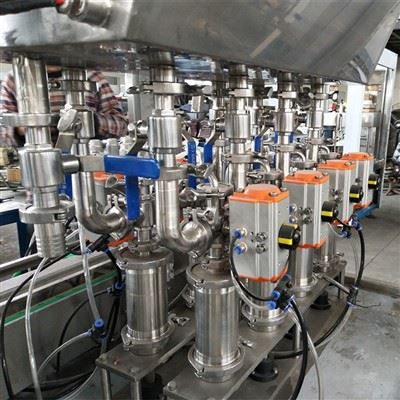

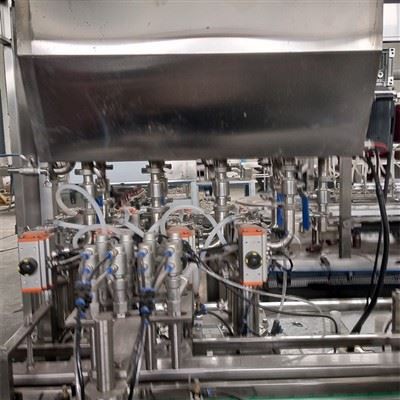

The filling head is equipped with leak proof device, and there is no wire drawing and drip leakage in the filling shape.

The imported electromagnetic clutch and electromagnetic brake are used together to eliminate inertia and improve filling accuracy.



Technical Parameters

Material	SUS304 and SUS316L
Filling heads	4	6	8	10	12
Filling range	10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml
Filling speed (bottles/ hour & based on 500ml bottle)	2000-2500	2500-3000	3000-3500	3500-4000	4000-4500
Filling precision	±0.5-1%
Power	220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries)
Air pressure	0.4-0.6Mpa
Machine size (L*W*Hmm)	2000*900*2200	2400*900*2200	2800*900*2200	3200*900*2200	3500*900*2200
Weight	450Kg	500Kg	550Kg	600Kg	650



Our Advantages:

How long it would take to deliver if I decided to purchase?

Because all of our machine will be customized according to your bottles .so the production time is about 30-40 days after get your bottle samples and deposit .



In case of breakdown the parts are it easily findable and deliver quickly?

Yes.we will provide you one years warranty with any easy damage spare part for free.



What resources does your company offer in terms of set up and additional support?

Our engineer is available to set up machine and provide technical support for you.beside this .we provide manual book and video support.



Can i send bottle and cap test ?how much would you need ?can you make a video of this ?

Our machine is customized according to the bottle size and cap size . when machine is ready we will send you test video.



What about spare parts?

We will send enough perishable spare parts for one year with the machine shipped together. We will offer spare parts within the warranty term.



6.Do you have certificates?

Yes.we have been certified .we can also provide IQ OQ documentation.

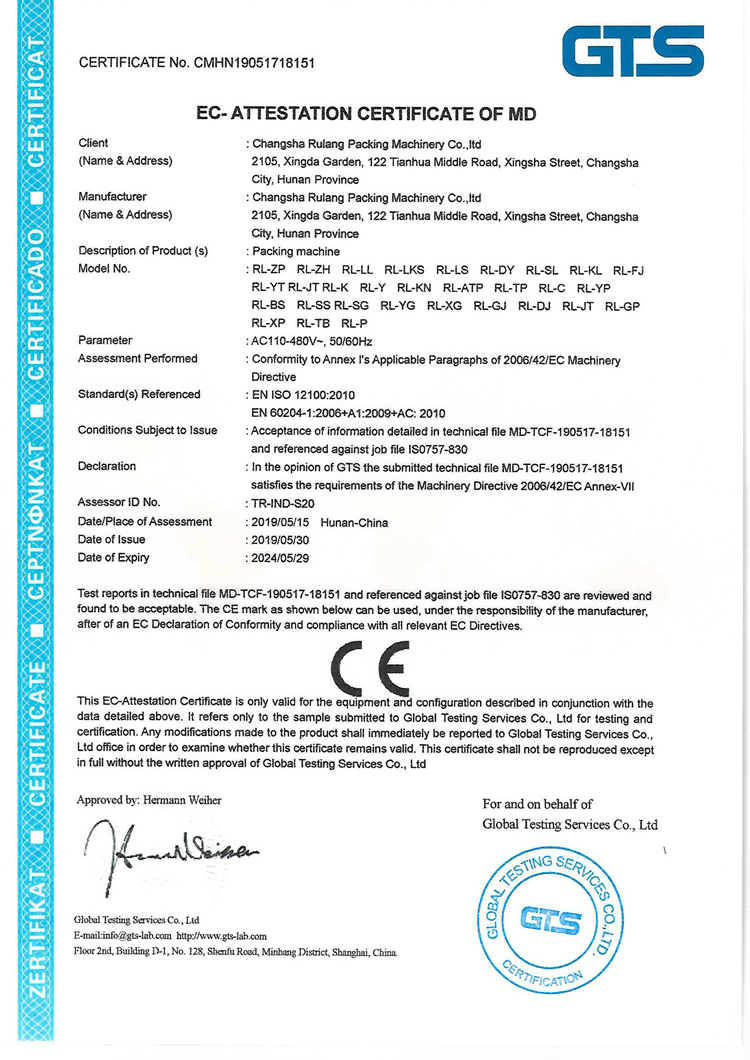

CE certificate approved



Packing and shipping



Welcome to send inquiry about our automatic maple syrup filling machine!
