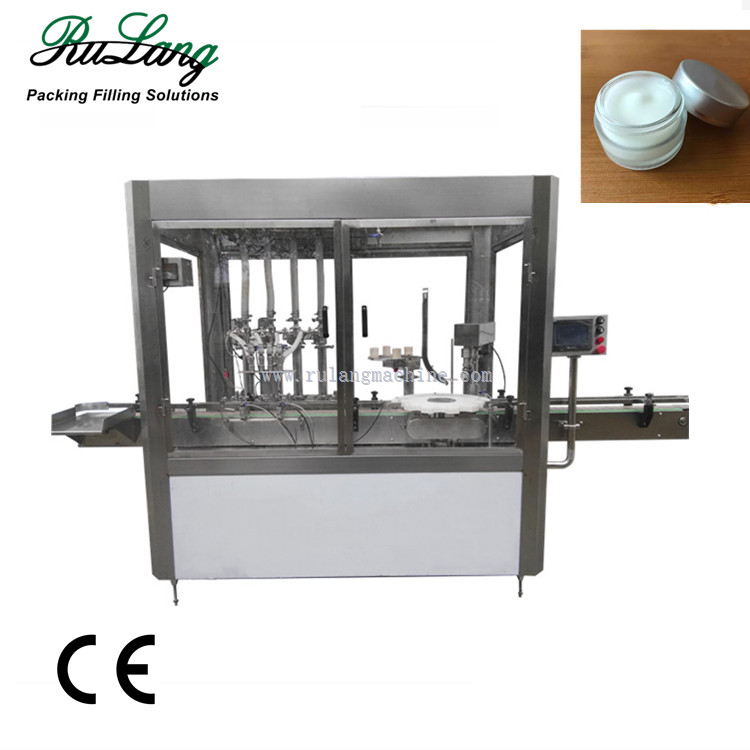

RL-80JT automatic cream filling machine

Automatic Overflow Cream Filling Machine adopts constant pressure fixed flow channel parameters, and controls the filling time to realize different metering filling.

Description:

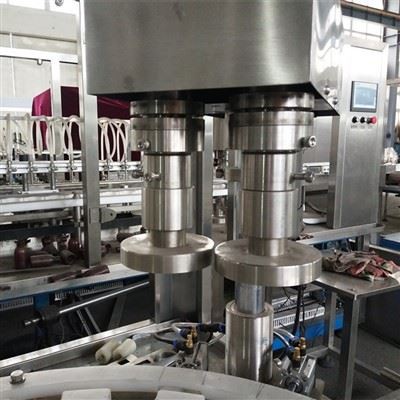

This is intelligent high-viscosity filling machine and is suitable for packaging of non-viscosity and high-viscosity materials. The whole machine has an in-line structure, and the principle of servo motor-driven filling and volumetric filling is used to achieve high accuracy of the filling dose. Optional high-precision electronic scale automatic weighing data transmission system for faster dose adjustment

Performance feature:

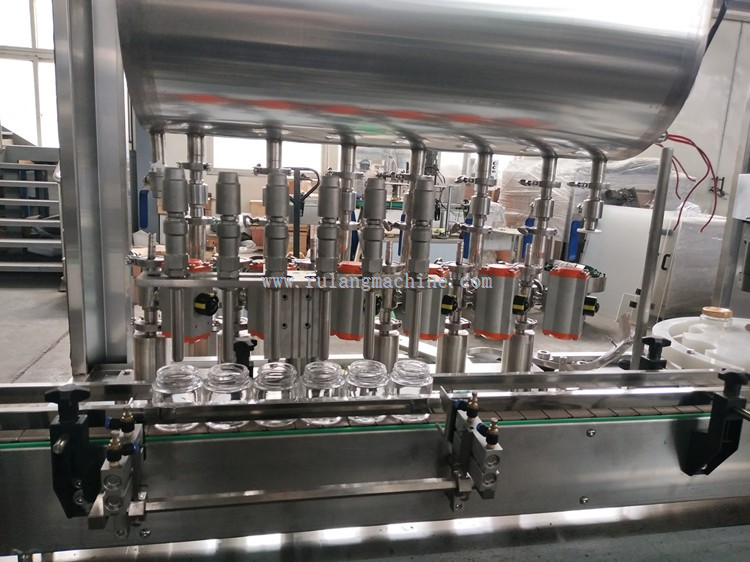

1.The filling valve adopts high-quality anti-drip filling valve.

2.And it is equipped with a liquid receiving tray to ensure that the liquid will not drip onto the bottle.

3.Use a large-diameter filling valve for sauces.

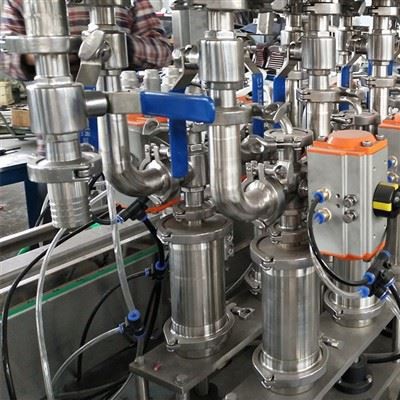

4.Use 316 stainless steel piston cylinder

5.It can fill a variety of liquids, viscous materials, and is widely applicable.

6.It is driven by imported servo motor to ensure the accuracy of filling.

7.The principle of servo motor-driven filling and volumetric filling is used to achieve high accuracy of the filling dose.

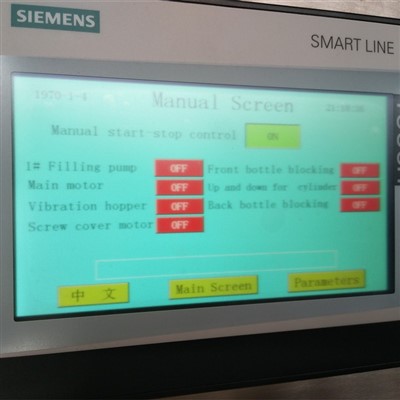

8.Touch screen control panel with English version,this will be faster and easier when adjusting parameter Each parameter can be controlled accurately according to operation ensure the filling accuracy.

9.This machine need to work with air compressor,customers need to buy it separately,if you need this,please contact us for more information.

Technical Parameters

Nozzles:	4 nozzles (4, 6, 8, 10, 16 are customizable)
Output:	2000 BPH
Filling Capacity:	40-1000 ml
Measurement Accuracy:	≤ ±1%
Contained Conveyor Belt:	2.5 meters
HMI:	Touch Screen
Control System:	PLC
Voltage:	AC One-phase 220V 1.5Kw
Air Pressure:	0.5-0.7 mpa
Dimensions:	3000× 1200×1800mm
Machine Weight:	600 kgs

Our Advantages:
1.Q: What’s the guarantee of the machine?

A: We have 1 year’s guarantee of the machine We would like to send you new one since we have one year warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it. Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.

2.Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-40 days if the goods are not in stock, it is according to customization.

3.Q: How to install the machine after we received the machine?

A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance ,balance before shipment.

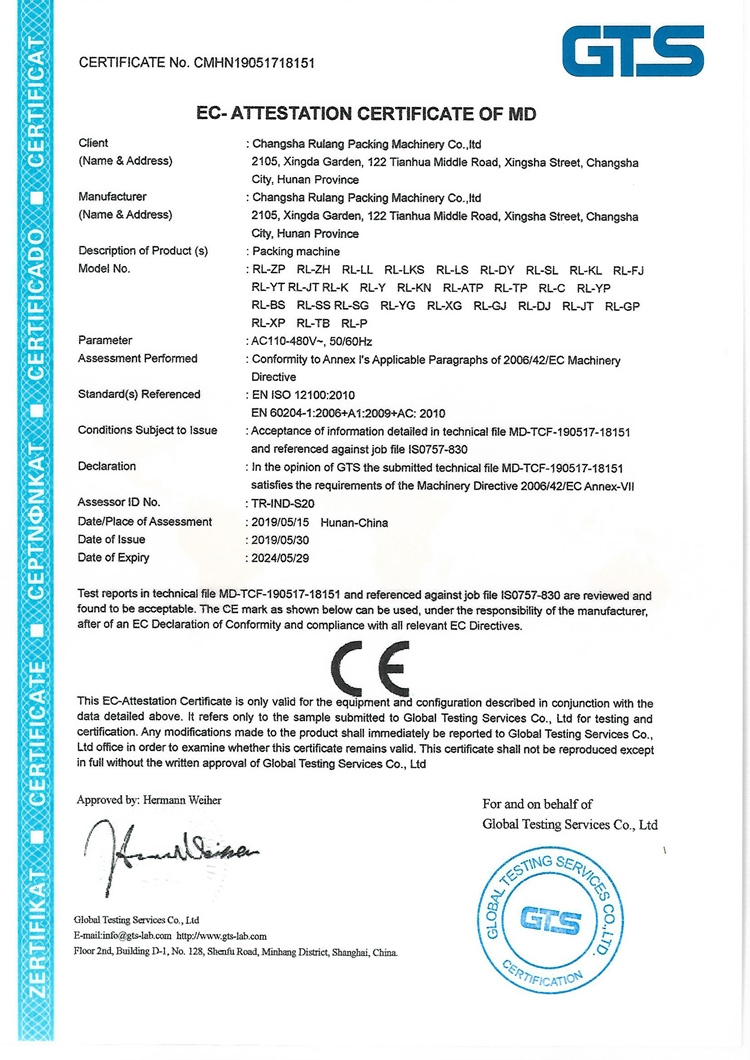

CE certificate approved

Packing and shipping

Welcome to send inquiry about our automatic cream filling machine!
